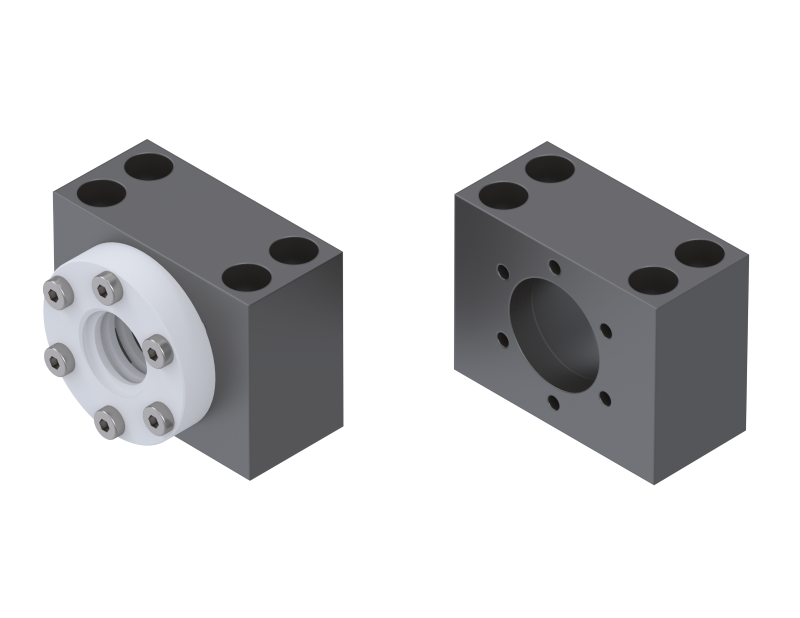

Adaptor bracket MAFN

Adaptor bracket for radial fastening off trapezoidal-threaded flanged nuts EFM or ball screw flanged nuts KGF-N/ KGF-D according to DIN 69051. This is an adapter bracket for radial fastening of trapezoidal nuts TGM-EFM, flanged ball nuts KGF-D according to DIN 69051 or flanged ball nuts KGF-N according to NEFF standard. The adapter bracket MAFN should be fixed positively to the screwed-on system through the outer edges to establish a form-fitting connection in order to avoid displacement of the mounted position during operation. Material: AlCuPbMg (anodised) – other materials on request.

Product data sheet

For implementing NEFF components in your construction, please use our 3D-configurator.
Download of 2D- or 3D-Models is possible in different formats.
